FEATURES:

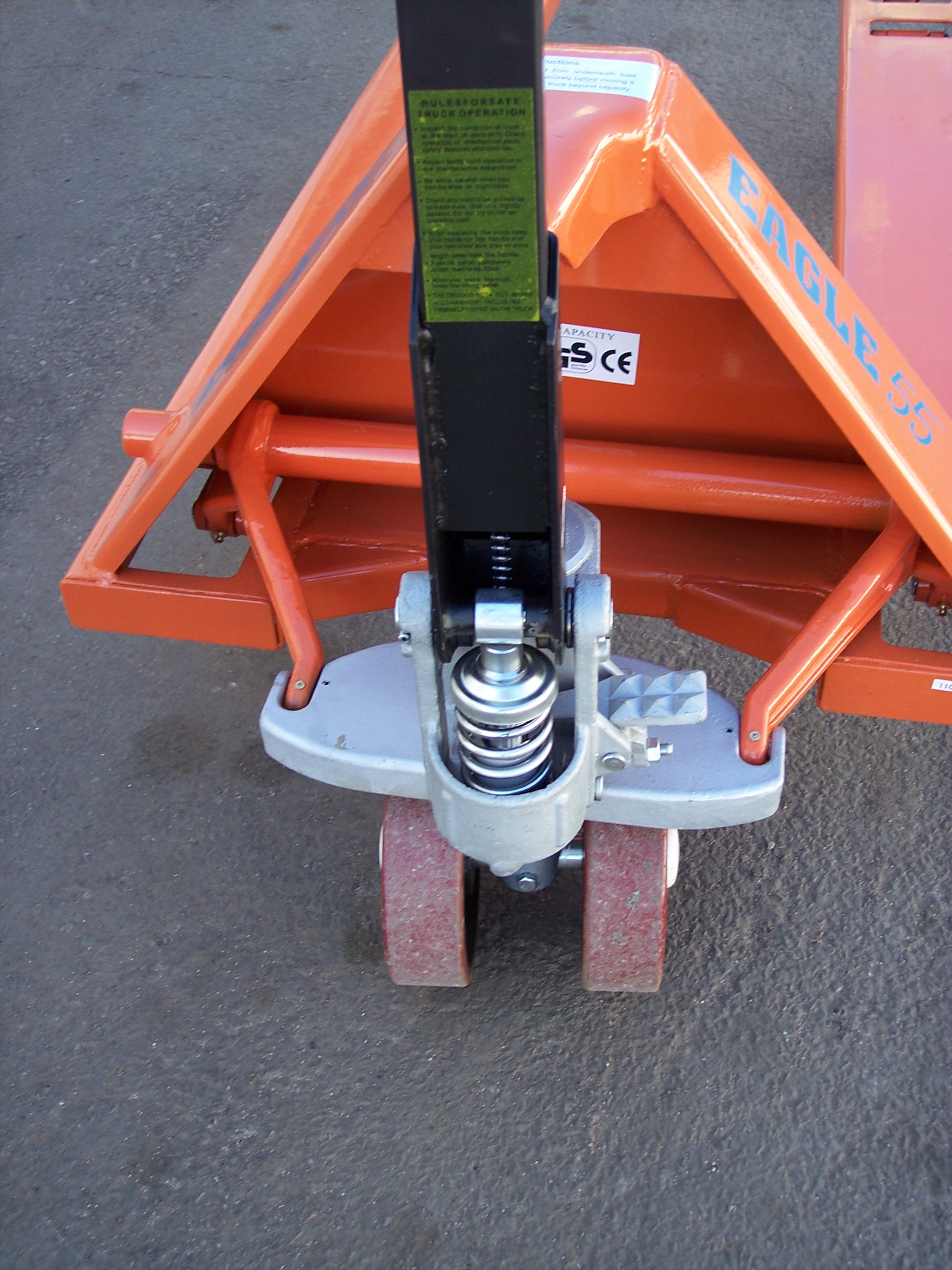

Hydraulic Pump:
Quality German design with a foot release pedal for ease of operation. The pump features a special lowering valve allowing a controlled rate of
decent and an overload by-pass valve. The pump requires 10 strokes to raise the forks to the maximum lift.

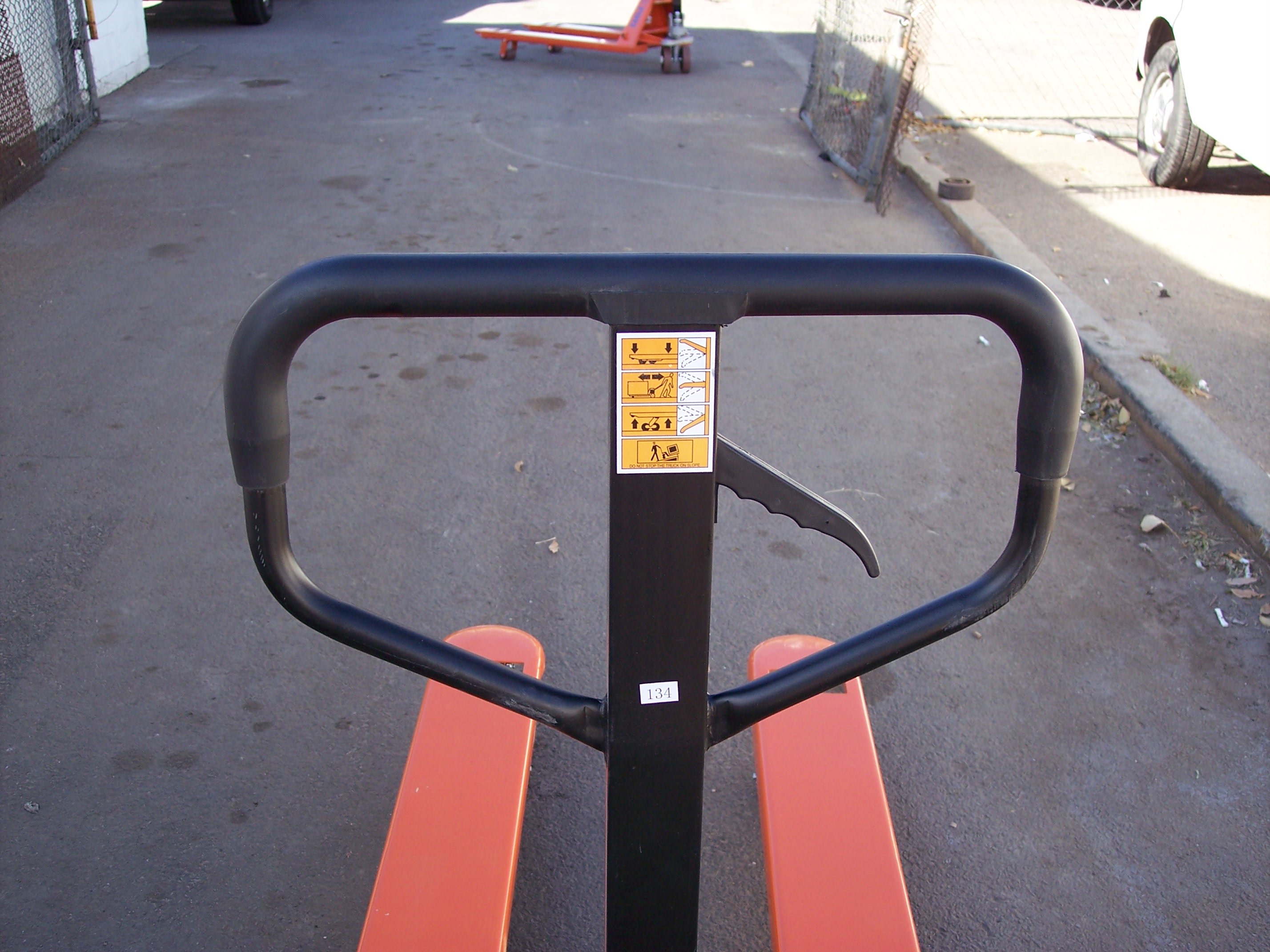

Control Handle: The control handle features three positions (raise-neutral-lower) fingertip control, ergonomically designed and free of pinch points. The handle
features a reinforced base, the spring loaded handle returns to the upright position automatically.

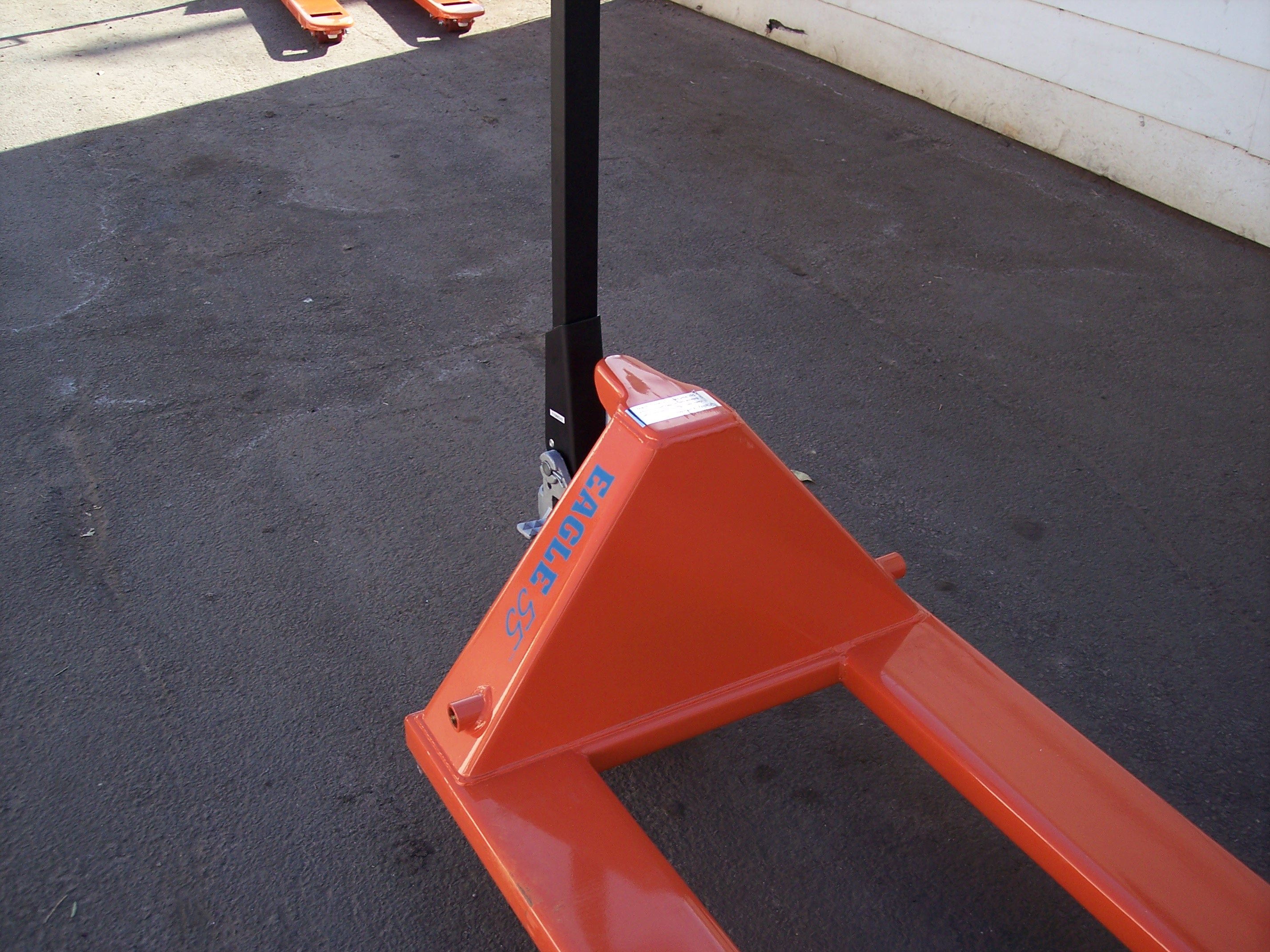

Frame: A rugged heavy-duty frame constructed of one-piece formed channel steel which produces maximum strength to the frame.
Forks: Reinforced with tapered ends for easy pallet entry.

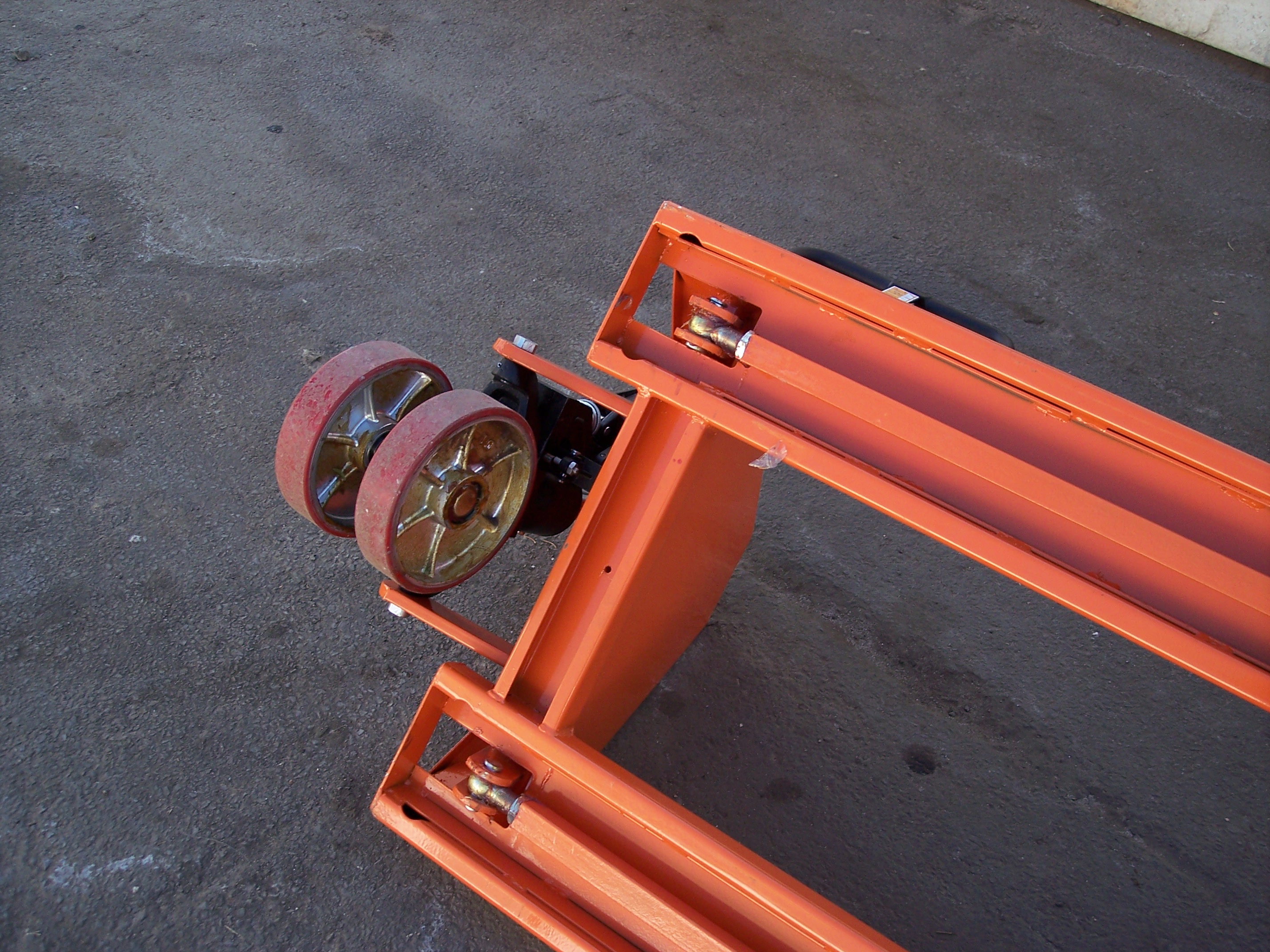

Steering: Features 200-degree pivot action for greater maneuverability, 7’ polyurethane wheels, sealed bearings and ball bearing thrust steering.
Load Rollers: Features 2.9” polyurethane load rollers with sealed bearings.
Adjustable Push Rods: The adjustable push rods allow for individual adjustment capability of either fork height.
Hangers: The one-piece hangers are constructed of steel for greater strength and longevity.
Helper Rollers: Features helper rollers for ease of entry and exit of pallets.
Pivot Points: The Eagle 55 features grease fittings and bushings at all pivot points for proper maintenance and longevity.

SPECIFICATIONS:
LOAD CAPACITY 5500LB
FORK LENGTH 48”
FORK WIDTH 20.5”, 27”
LOWERED HEIGHT 2.9”
RAISED FORK HEIGHT 7.8”
INSIDE FORK WIDTH 6.5”
STEER WHEEL 7” POLYURETHANE
LOAD WHEEL 2.9” X 3.6” POLYURETHANE
HANDLE FULCRUM 16.6”
FOB:CARLISLE,PA.17013
877-411-LIFT   SOLUTIONS   915-778-0058   SOLUTIONS   877-411-LIFT
QUALITY EQUIPMENT AT DISCOUNT PRICES
Se Habla
Se Habla
The Source For All Your Material Handling Equipment Needs
PARTS & SERVICE FOR ALL MAKES & MODELS
411MHE.com

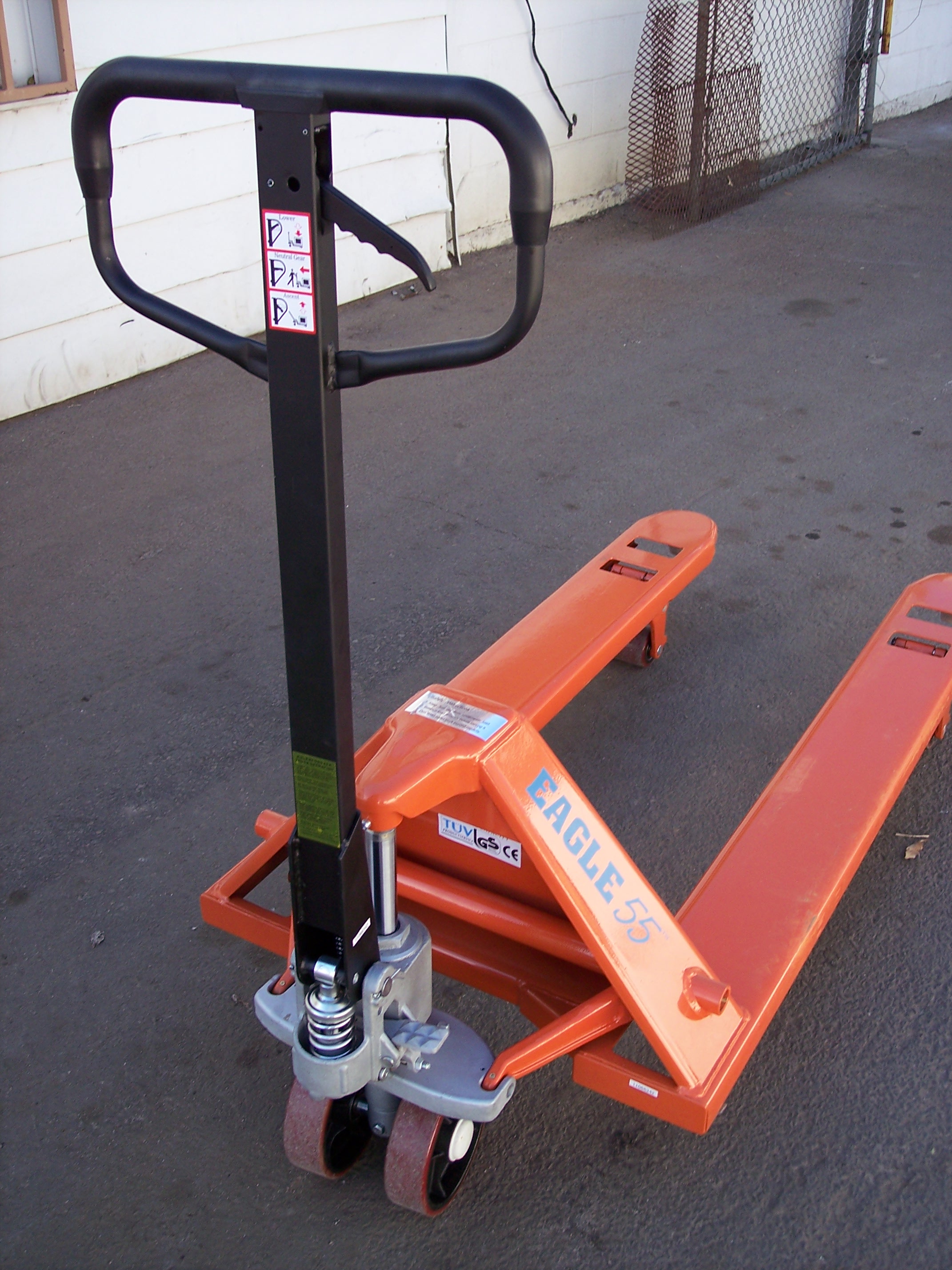

NEW EAGLE 55 PALLET JACKS
CALL: GREAT VALUE
7 YEAR PUMP WARRANTY
3 YEAR PUMP WARRANTY
REINFORCED HEAVY
GAGE PUMP HANDEL
SOLID STEEL PUSH RODS
THREE POSITION
(raise-neutral-lower)
FINGER TIP CONTROL
ONE PIECE CAST IRON GERMAN DESIGN
PUMP WITH A THREE YEAR WARRANTY
The Eagle 55 Pallet Truck has now become a recognized brand name in the industry.
The Eagle is rapidly gaining market share and has become the pallet truck of choice for
many material handling dealers. The
Eagle 55 with its one piece, cast iron German
design pump comes with a 3 year warranty ensuring lower maintenance costs. The
durable, ergonomically designed
Eagle 55 is proven to be versatile and is very easy to
use, reducing operator fatigue. The
Eagle 55 features polyurethane wheels and rollers
with sealed bearings, a 200 degree handle pivot to make it very maneuverable in tight
areas. The frame features a powder coat paint finish with robotic welds throughout,
grease fittings and bushings at all pivot points helping to insure trouble free long lasting
ownership experience.
POWDER COAT PAINT FINISH WITH
ROBOTIC WELDS THROUGH OUT
GREASE FITTINGS AT ALL PIVOT POINTS
FOR PROPER MAINTENANCE HELPING TO
INSURE LONG LASTING OWNERSHIP
POLYURETHANE WHEELS AND ROLLERS
CALL:     5500 lbs. CAPACITY  STANDARD SIZE  27" X 48"    CALL
CALL:     5500 lbs. CAPACITY   NARROW SIZE  20.5" X 48"    CALL
With Over 25 in Business and 100's of Years of Cumulative Experience in Suppling
New Used and Fabricated Material Handling Equipment We Have the Expertise to
Offer You the Best Options in Procuring Your Equipment
